TaxiLiner

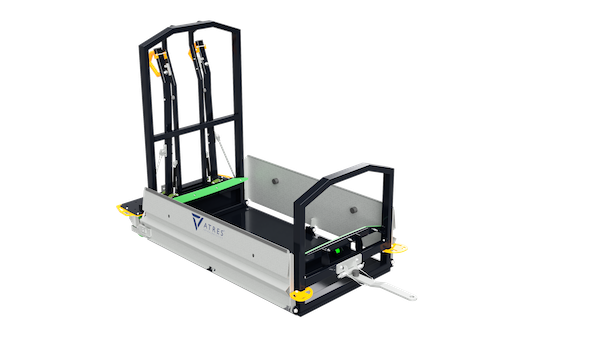

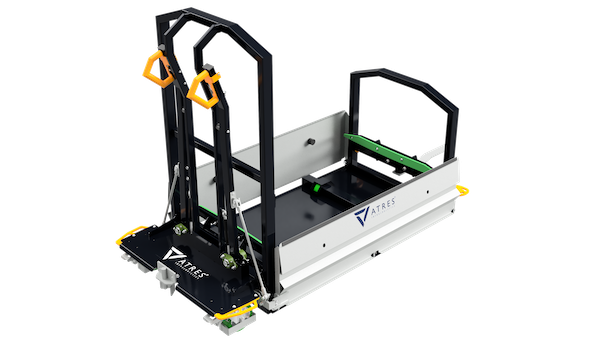

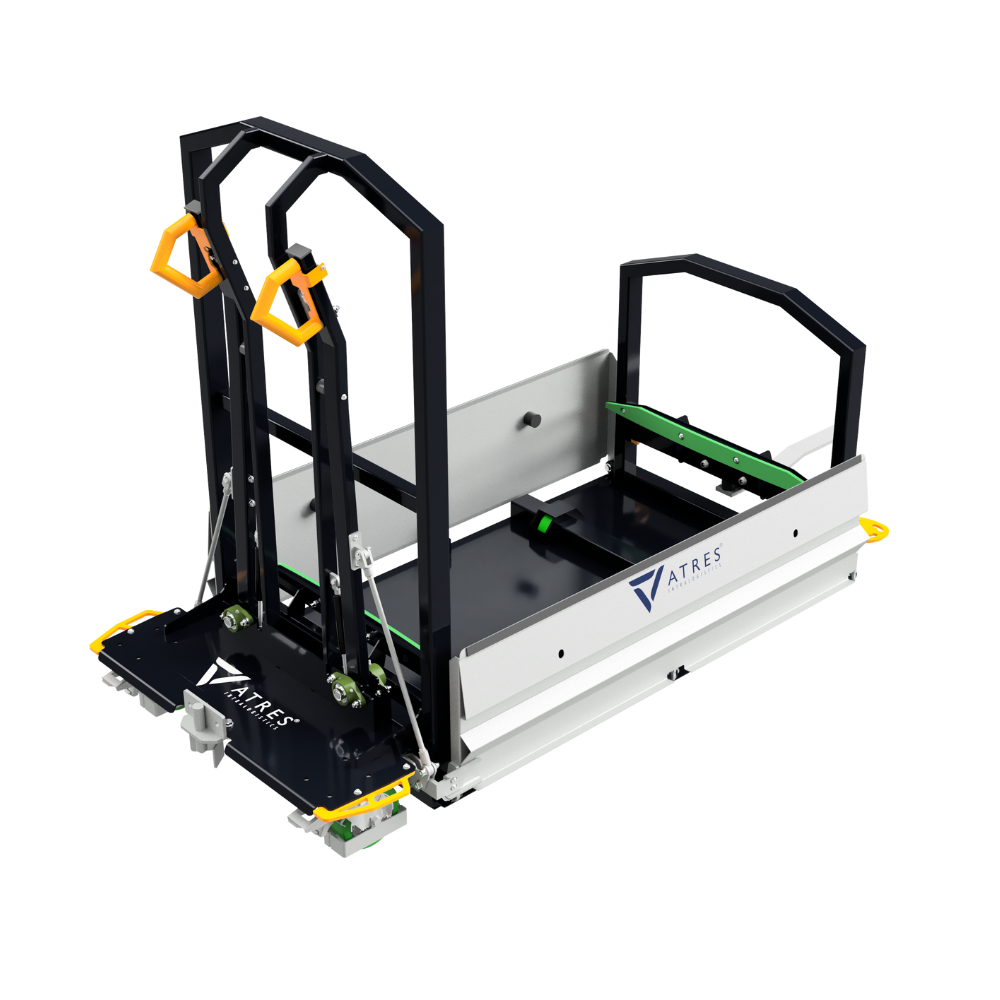

TaxiLiner 4-wheel trolley with the possibility of unloading on both sides. A special structure equipped with sideboards with manual levers is used to transport a wide range of large and small loads. TaxiLiners form an integral part of the transport system, which means there is no need to connect and disconnect individual transport units during unloading.
Application
klt container
pallet container
grille container
euro pallet
universal pallet
any container

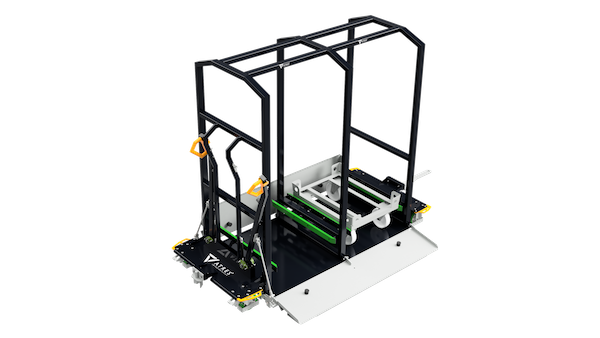

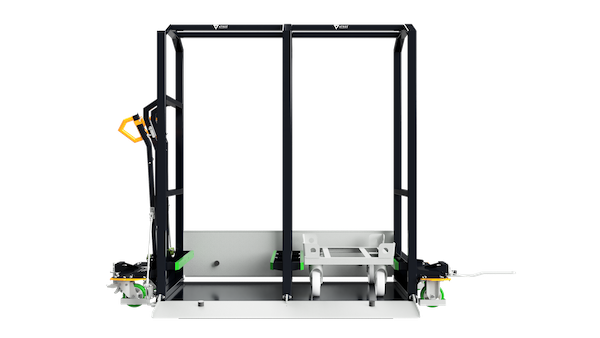

| S1 EURO | S1 INDUSTRIAL | S2 (Two-slot trolley) | S3 (Three-slot trolley) | |
| External dimensions (l x w x h) |
1824 x 1017 mm | 2024 x 1217 mm | 1501 x 765 x 1402 mm | 2083 x 765 x 1402 mm |
| Loading space
(l x w x h) |
1225 x 855 mm | 1255 x 1055 mm | 425 x 635 x 1330 mm (single slot) | 425 x 625 x 1330 mm (single slot) |
| Bearing capacity | 500 kg | 500 kg | 250 kg (per slot) | 250 kg (per slot) |
| Speed | max 6km/h | max 6km/h | max 6km/h | max 6km/h |
| Driving system | 4-wheel with inverted drawbar | 4-wheel with inverted drawbar | 4-wheel with inverted drawbar | 4-wheel with inverted drawbar |
| Total weight of sets | 3000 kg | 3000 kg | 3000 kg | 3000 kg |
| Wheel type | Polyurethane green, ergonomic, hardness 75° Shore A | Polyurethane green, ergonomic, hardness 75° Shore A | Polyurethane green, ergonomic, hardness 75° Shore A | Polyurethane green, ergonomic, hardness 75° Shore A |
| Additional equipment | + 4-wheel steering system | + 4-wheel steering system | + 4-wheel steering system | + 4-wheel steering system |
Other trolleys in the series Basic
All trolleys on offer are manufactured in accordance with DIN EN ISO 3834-2 (quality assurance system in welding), issued by TÜV Rheinland Group and in accordance with PN-EN1757-3.
