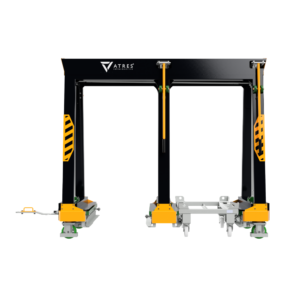

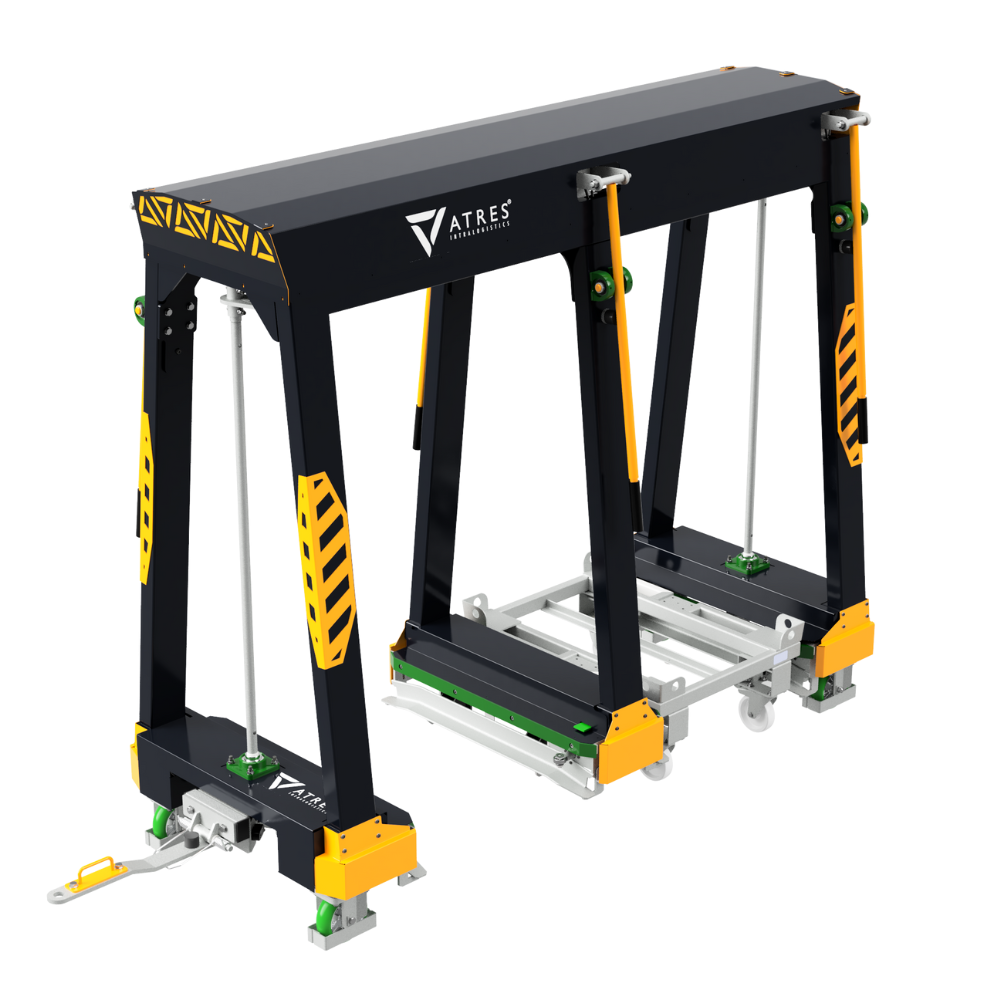

Gantry Trolley
The gantry trolley with a ramp transports Atres Intralogistics running frames. The transport set consists of a base car and one or more transported transport carts. Thanks to its construction, it enables loading and unloading on both sides.
As a standard, it is adapted to transport loads with dimensions of 800×600 mm, with the possibility of adapting to other dimensions. It is equipped with signaling that the frame is properly blocked. The four-wheel steering system ensures excellent driving characteristics.
Application
klt container
pallet container
grille container
euro pallet
universal pallet
any container
| Gantry trolley | ||
| External dimensions (l x w x h) | 2381 x 923 x 1946 mm | |
| Loading space (l x w x h) | 800 x 600 x 1450 mm | |
| Bearing capacity | 500 kg | |
| Bearing capacity per slot | 250 kg | |
| Speed | max 6km/h | |
| Driving system | ||
| Total weight of set | 3000 kg | |
| Wheel type | non-marking olyurethane green, ergonomic, hardness 75° Shore A | |
| Additional equipment | + inverted drawbar |
Other trolleys in the series Basic
All trolleys on offer are manufactured in accordance with DIN EN ISO 3834-2 (quality assurance system in welding), issued by TÜV Rheinland Group and in accordance with PN-EN1757-3.
