Series

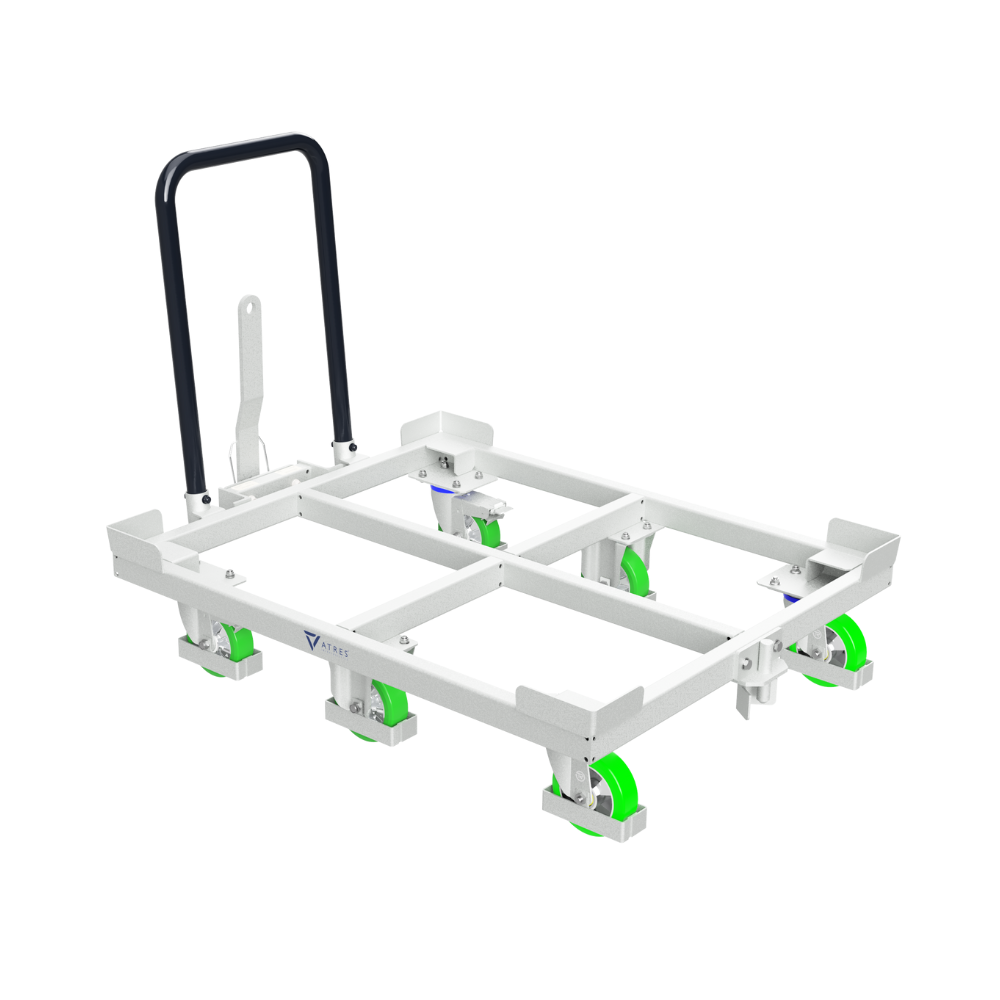

Platform trolley H type

4-wheel platform trolley with inverted drawbar system. As a standard, it is adapted to transport loads of Euro and Industrial dimensions. Thanks to the use of a light and durable steel structure, the trolley is durable and easy to use. It is used to transport cargo carriers, e.g. pallets, and containers.

Application

klt container

klt container

pallet container

pallet container

grille container

grille container

euro pallet

euro pallet

universal pallet

universal pallet

any container

any container

EUROINDUSTRIAL
External dimensions

(l x w x h)

1432 x 869 mm1432 x 1069 mm
Loading space

(l x w x h)

1225 x 825 mm1226 x 1025 mm
Bearing capacity1000 kg1000 kg
Speedmax 6km/hmax 6km/h
Driving system

4 – wheel system with inverted drawbar

4 – wheel system with inverted drawbar

Total weight of sets3000 kg3000 kg
Wheel type

Polyurethane green, ergonomic, hardness 75° Shore A

Polyurethane green, ergonomic, hardness 75° Shore A

Additional equipment

+ 4-wheel steering system

+ tarpaulin
+ grille

+ 4-wheel steering system

+ tarpaulin

+ grille



Wózek platformowy logistyczny Wózek do fabryki leanWózek platformowy H z kratą

All trolleys on offer are manufactured in accordance with DIN EN ISO 3834-2 (quality assurance system in welding), issued by TÜV Rheinland Group and in accordance with PN-EN1757-3.
