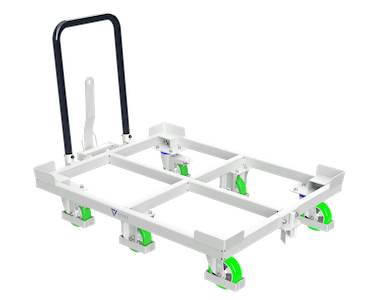

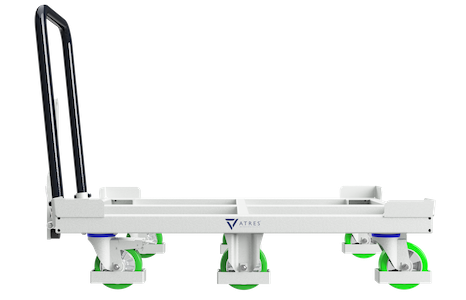

6-wheel platform trolley
6-wheel platform trolley with a central fixed axle. As a standard, it is adapted to transport loads of Euro and Industrial dimensions. Thanks to the use of a central fixed axis and the remaining 4 swivel wheels, it can rotate in a given place by 360° around its own axis. The trolley is easy to use. It is used to transport cargo carriers, e.g. pallets, and containers.
![Intralogistiksysteme Atres Intralogistics](https://atres.pl/wp-content/uploads/2022/07/Wózek-6-kólz-osią-stalą.png)
Application
klt container
pallet container
grille container
euro pallet
universal pallet
any container
EURO | INDUSTRIAL | ||
External dimensions
(l x w x h) |
1437 x 867 mm | 1437 x 1067 mm | |
Loading space
(l x w x h) |
1225 x 825 mm | 1225 x 1023 mm | |
Bearing capacity | 1000 kg | 1000 kg | |
Speed | max 6km/h | max 6km/h | |
Wheel system | 6-wheel with a central fixed axle | 6-wheel with a central fixed axle | |
Total weight of sets | 3000 kg | 3000 kg | |
Wheel type |
Polyurethane green, ergonomic, hardness 75° Shore A |
Polyurethane green, ergonomic, hardness 75° Shore A |
|
Additional equipment |

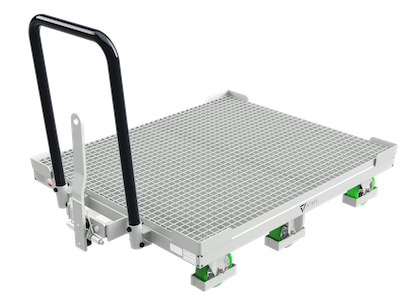

+ lifted, suspended central axle + grille |
+ lifted, suspended central axle + grille |
All trolleys on offer are manufactured in accordance with DIN EN ISO 3834-2 (quality assurance system in welding), issued by TÜV Rheinland Group and in accordance with PN-EN1757-3.
